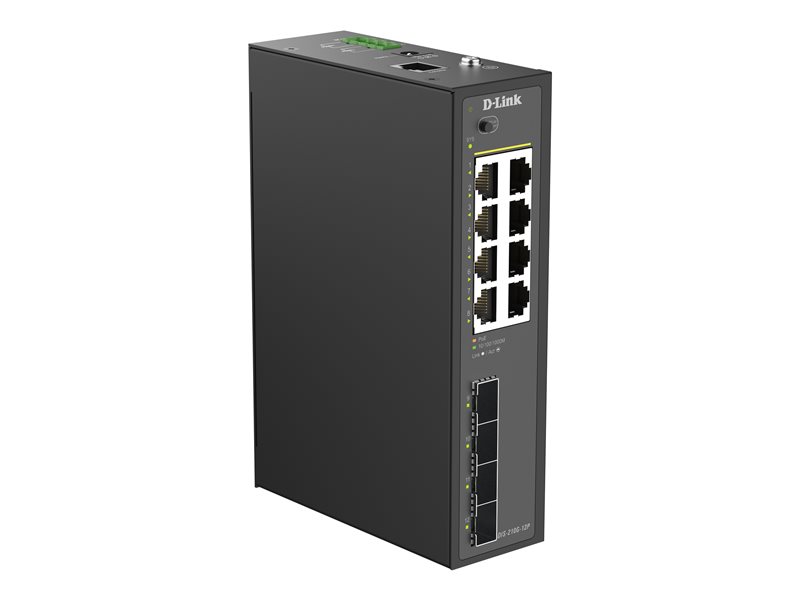

D-Link - D-Link DIS 210G-12P
Switch - industrial - smart - 8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - DIN rail mountable - PoE+ (240 W)
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | D-Link DIS 210G-12P - switch - industrial - 12 ports - smart |
| Device Type | Switch - 12 ports - smart |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Performance | Switching capacity: 24 Gbps ¦ Forwarding rate (64?byte packets): 17.85 Mpps |
| Capacity | Packet buffer memory: 4.1 Mbit ¦ VLAN IDs: 1 - 4094 ¦ Priority queues per port: 8 ¦ IP interfaces: 10 ¦ IPv4 ACL entries (ingress): 895 ¦ IPv6 ACL entries (ingress): 384 ¦ Maximum ARP Spoofing entries: 200 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | Static IP routing, IGMP |
| Remote Management Protocol | CLI, HTTPS, Telnet, DHCP, RMON 1, RMON 2, SNMP, SNMP 2, SNMP 3 |
| Features | Fanless, 6KV Surge protection, ERPS, CFM, STP support, Rapid Reconfiguration of Spanning Tree (RSTP), MSTP support, port mirroring, Link Aggregation, bandwidth control, Broadcast Storm Control, IGMP snooping, MLD snooping, loop detection, EEE, auto-uplink (auto MDI/MDI-X), store and forward, metal housing, LLDP, LLDP-MED, STP BPDU Filtering, HOL Blocking Prevention, RSPAN, VLAN mirroring, port-based VLAN, GVRP, MAC based VLAN, Voice VLAN, SPQ, WRR, DoS attack prevention, IP source guard, DAI, DHCP snooping, 802.1x authentication, Cable Diagnostics Function, NTP, SNTP, ICMPv4/ICMPv6 support, reset button, wall mountable |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1ag, IEEE 802.3ah, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.1v, IEEE 802.1x |
| Power | DC 48 - 55 V |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 10.7 cm x 16.4 cm x 4.4 cm |
| Weight | 820 g |
| General | |
| Device Type | Switch - 12 ports - smart |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Performance | Switching capacity: 24 Gbps ¦ Forwarding rate (64?byte packets): 17.85 Mpps |
| Capacity | Packet buffer memory: 4.1 Mbit ¦ VLAN IDs: 1 - 4094 ¦ Priority queues per port: 8 ¦ IP interfaces: 10 ¦ IPv4 ACL entries (ingress): 895 ¦ IPv6 ACL entries (ingress): 384 ¦ Maximum ARP Spoofing entries: 200 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | Static IP routing, IGMP |
| Remote Management Protocol | CLI, HTTPS, Telnet, DHCP, RMON 1, RMON 2, SNMP, SNMP 2, SNMP 3 |
| Encryption Algorithm | TLS 1.2, MD5 |
| Authentication Method | Secure Shell v.2 (SSH2), RADIUS, TACACS+ |
| Features | Fanless, 6KV Surge protection, ERPS, CFM, STP support, Rapid Reconfiguration of Spanning Tree (RSTP), MSTP support, port mirroring, Link Aggregation, bandwidth control, Broadcast Storm Control, IGMP snooping, MLD snooping, loop detection, EEE, auto-uplink (auto MDI/MDI-X), store and forward, metal housing, LLDP, LLDP-MED, STP BPDU Filtering, HOL Blocking Prevention, RSPAN, VLAN mirroring, port-based VLAN, GVRP, MAC based VLAN, Voice VLAN, SPQ, WRR, DoS attack prevention, IP source guard, DAI, DHCP snooping, 802.1x authentication, Cable Diagnostics Function, NTP, SNTP, ICMPv4/ICMPv6 support, reset button, wall mountable |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1ag, IEEE 802.3ah, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.1v, IEEE 802.1x |
| RAM | 128 MB |
| Flash Memory | 16 MB |
| Status Indicators | Power, system, link/activity/speed |
| Expansion / Connectivity | |
| Interfaces | 8 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 4 x 1000Base-X SFP ¦ 1 x console RJ-45 |
| Miscellaneous | |
| Included Accessories | DC terminal block, DIN-rail mounting kit, 4-port dust covers(SFP) |
| Cables Included | 1 x console cable |
| MTBF | >200,000 hours |
| Compliant Standards | IP40, ITU Y.1731, cUL, CB, BSMI, VCCI Class A, EMI FCC Class A, IC, RCM |
| Power | |
| Power Device | External power adapter (not included) |
| Power Redundancy | Yes |
| Voltage Required | DC 48 - 55 V |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 5 - 95% RH |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Humidity Range Storage | 5 - 95% RH |
| Dimensions & Weight | |
| Width | 10.7 cm |
| Depth | 16.4 cm |
| Height | 4.4 cm |
| Weight | 820 g |
