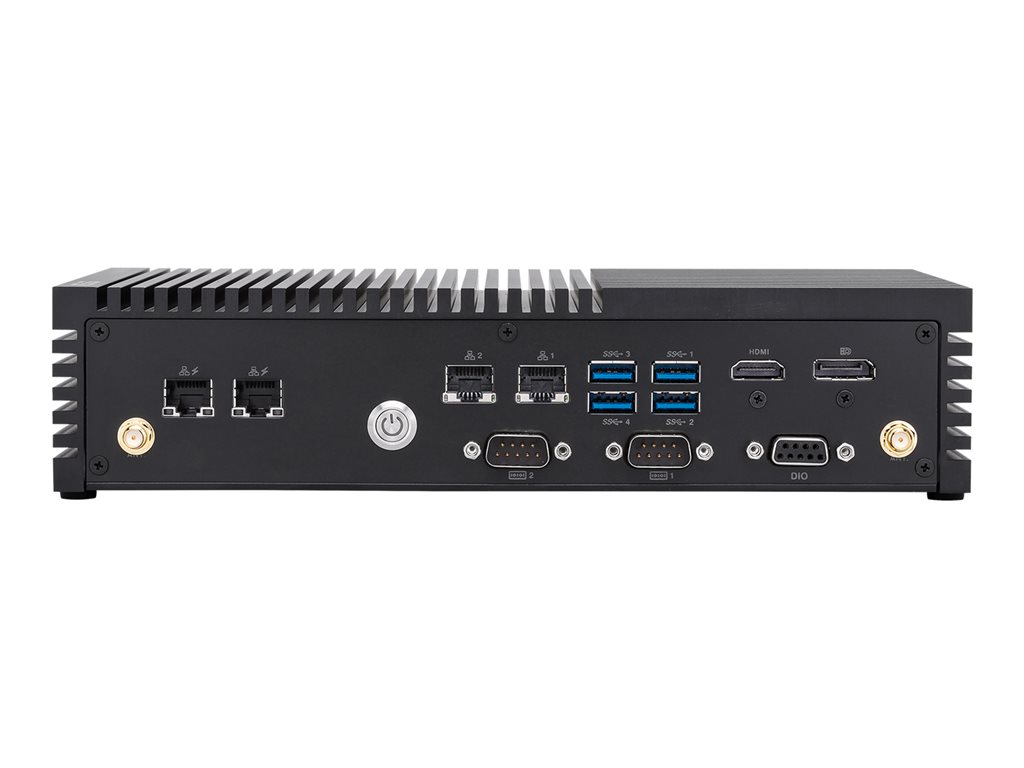

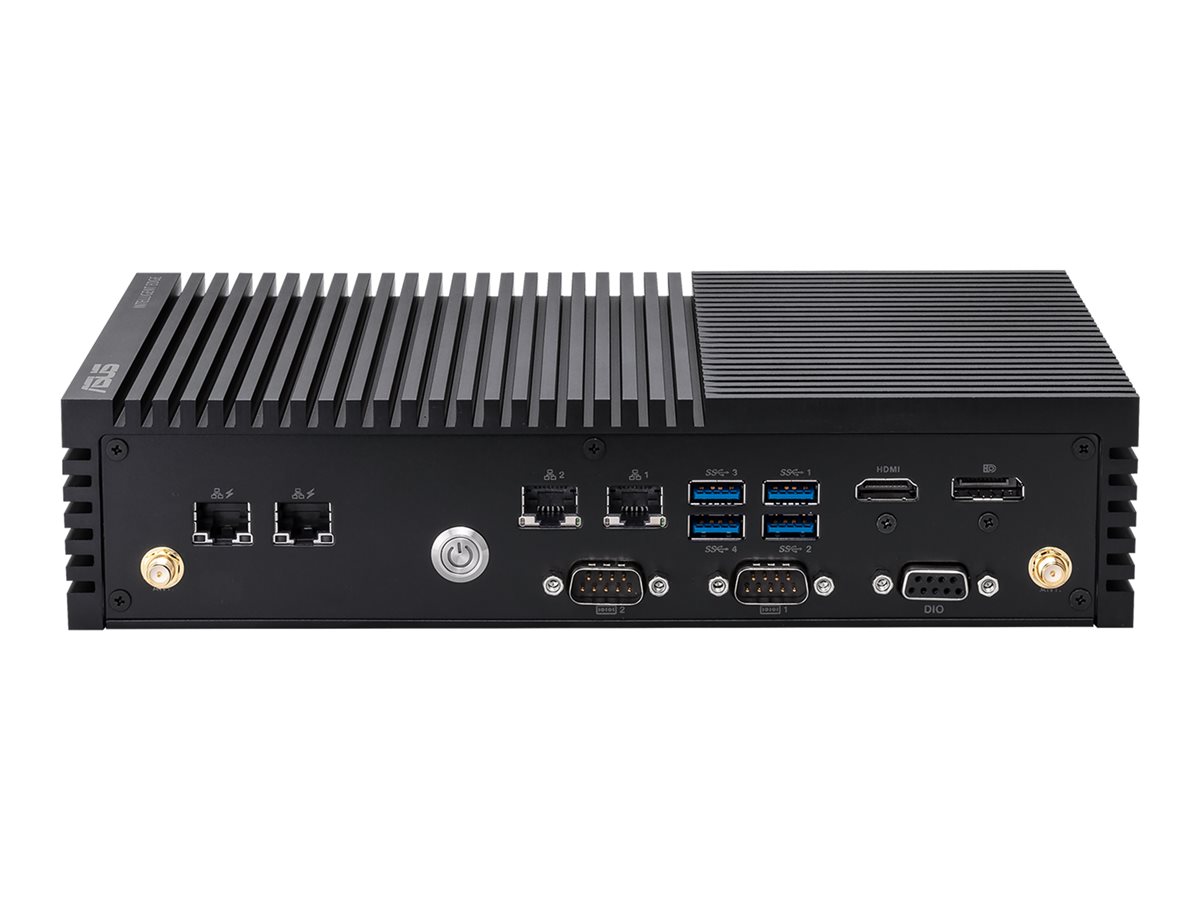

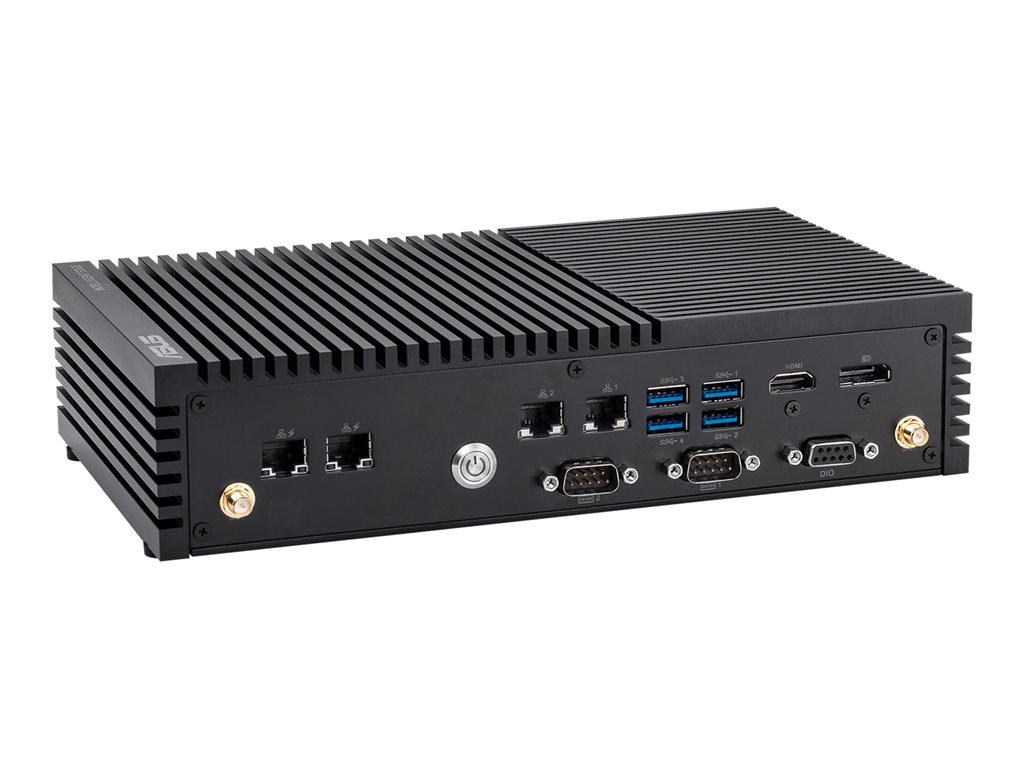

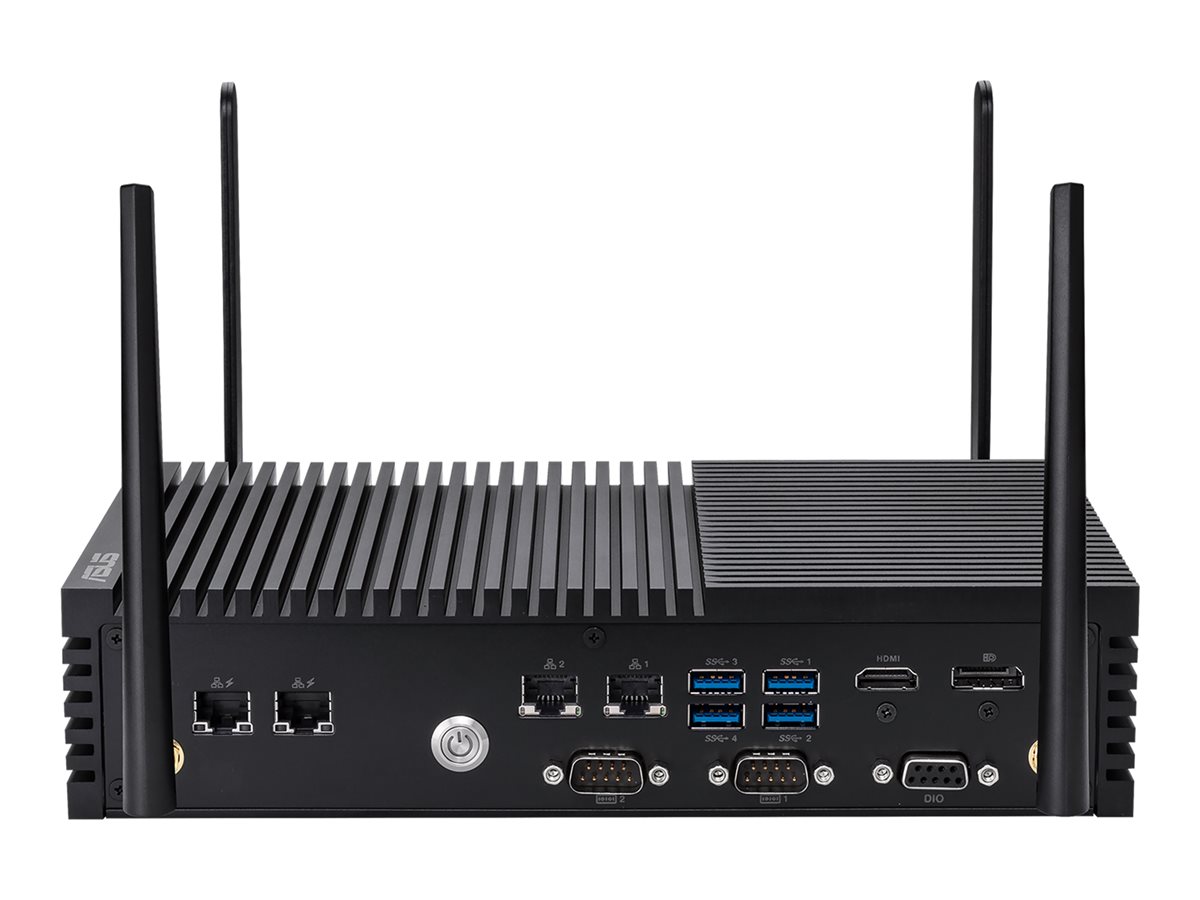

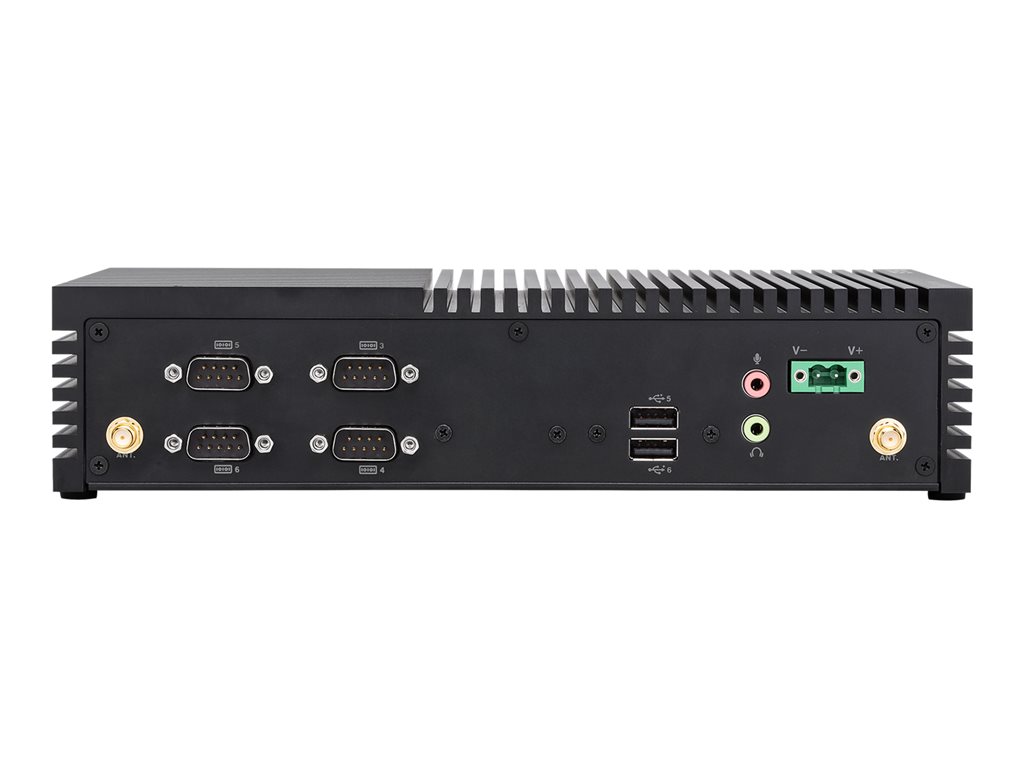

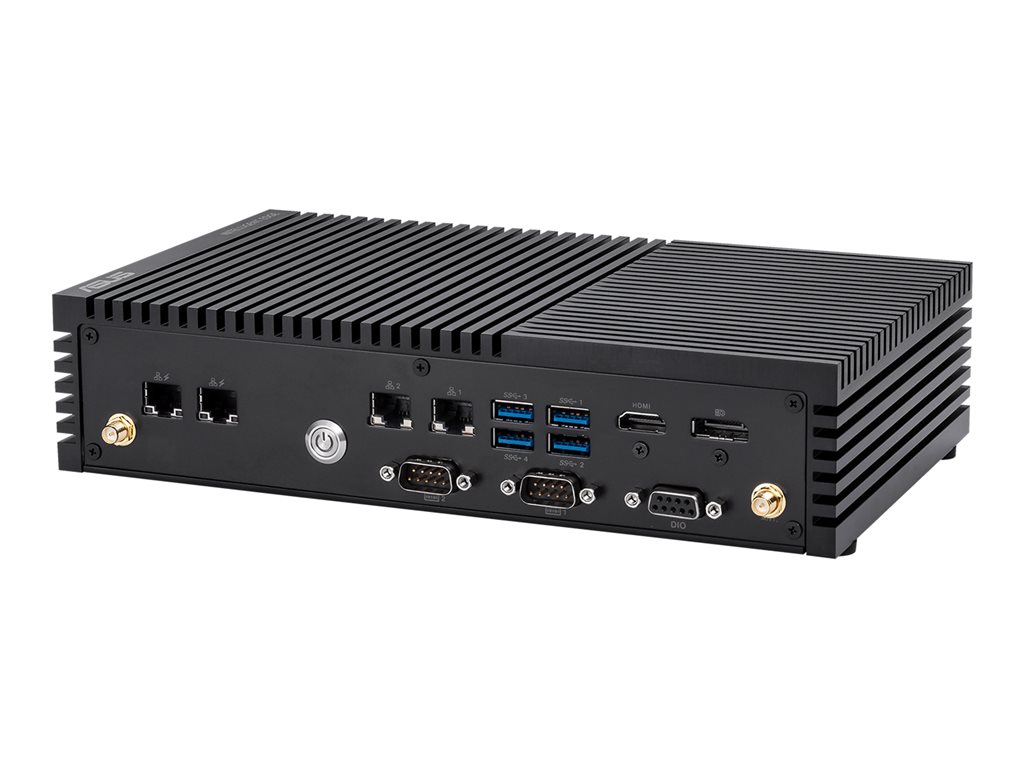

ASUS - ASUS PE200S E3940
Barebone - USFF - 1 x Atom x5 E3940 / up to 1.8 GHz - RAM 4 GB - HD Graphics 500 - Gigabit Ethernet
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | ASUS PE200S E3940 - USFF - AI Ready - Atom x5 E3940 1.6 GHz - 4 GB - no HDD |
| Type | PC barebone - USFF AI Ready |
| Processor | 1 x Intel Atom x5 E3940 / 1.6 GHz (, up to 1.8 GHz, (Quad-Core) |
| RAM | 4 GB (installed) / 8 GB (max) - DDR3L SDRAM - non-ECC |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | Intel HD Graphics 500 |
| Networking | 1GbE |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 25.4 cm x 14.7 cm x 5.7 cm |
| General | |
| Type | PC barebone - AI Ready |
| Product Form Factor | USFF |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2230 (Key E) ¦ 1 (total) / 1 (free) x M.2 Card - 2242 (Key M) ¦ 1 (total) / 1 (free) x Mini PCIe/mSATA - full-length ¦ 1 (total) / 1 (free) x Nano-SIM card ¦ 1 (total) / 1 (free) x microSD Card (internal) |
| Interfaces | 1 x microphone ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x DisplayPort ¦ 1 x headphones ¦ 1 x HDMI ¦ 4 x USB 3.1 Gen 1 ¦ 2 x serial ¦ 1 x GPIO |
| RAM | |
| Installed Size | 4 GB (installed) / 8 GB (max) |
| Technology | DDR3L SDRAM - non-ECC |
| Effective Memory Speed | 1866 MHz |
| Rated Memory Speed | 1866 MHz |
| Form Factor | SO-DIMM 204-pin |
| Slots | 1 (total) / 0 (empty) |
| Features | Unbuffered |
| Configuration Features | 1 x 4 GB |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | 2 x Intel I210-IT |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Device Type | Power adapter |
| Environmental Parameters | |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 0 - 85% |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Optical Storage | |
| Type | No optical drive |
| Operating System / Software | |
| OS Provided | No operating system |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel HD Graphics 500 |
| Video Interfaces | HDMI, DisplayPort |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 25.4 cm |
| Depth | 14.7 cm |
| Height | 5.7 cm |
| Processor / Chipset | |
| CPU | Intel Atom x5 E3940 |
| Clock Speed | 1.6 GHz |
| Max Turbo Speed | 1.8 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
